Ensemble Replacement Entry Doors

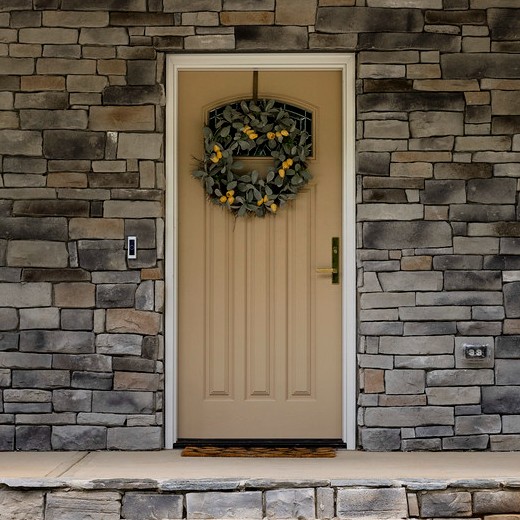

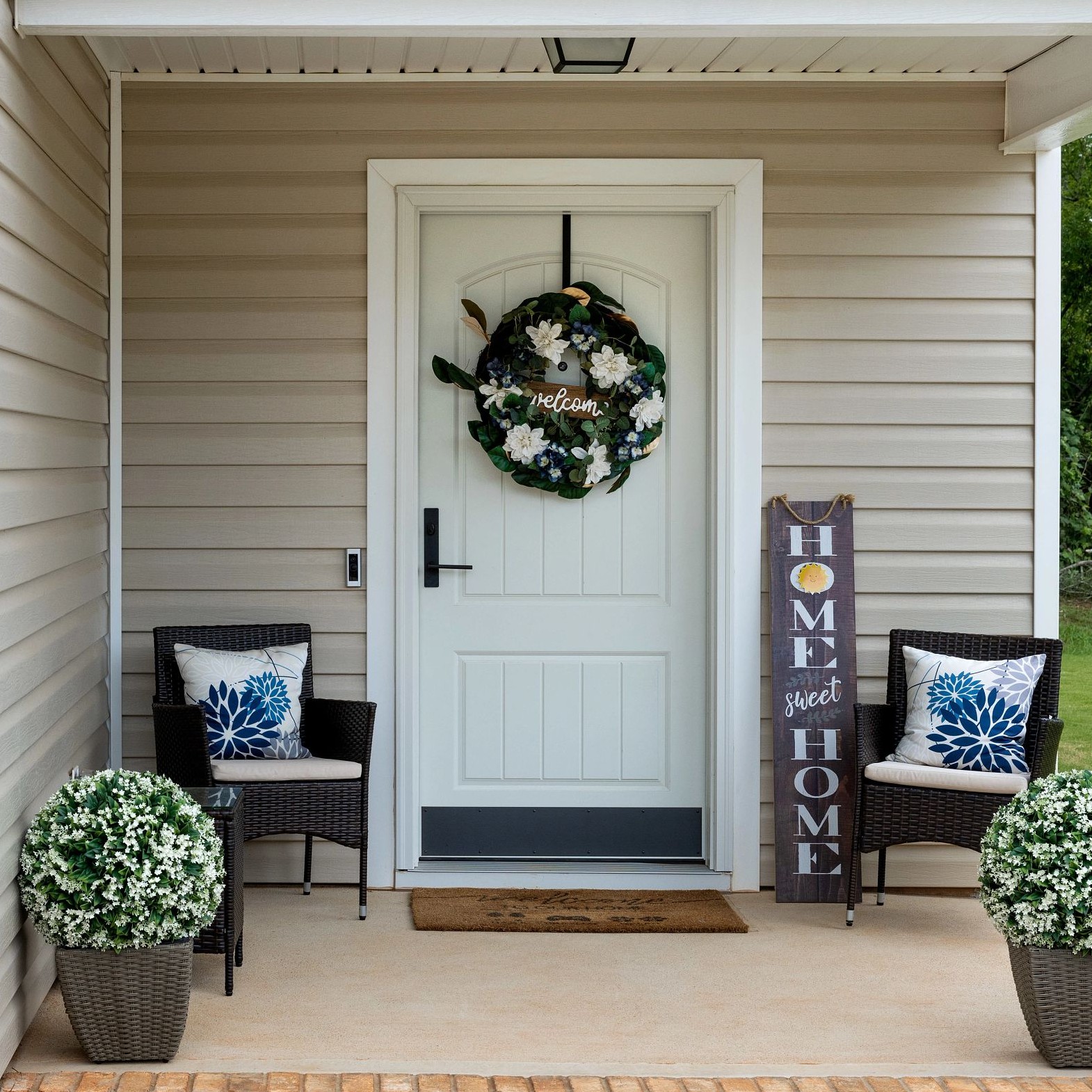

The Ensemble^® replacement entry door system comes in single and double panel configurations. The single panel door can be configured for left- or right-handed inward opening. Single panel doors can be just a single panel, or can have one or two sidelights. Sidelights can be direct-set or panel-set.

Double panel doors have two options. They can have a single operable panel (left or right) and one fixed panel, separated by a mullion. The operable panel can be hinged on the mullion or the jamb to open to the right or left, as you prefer.

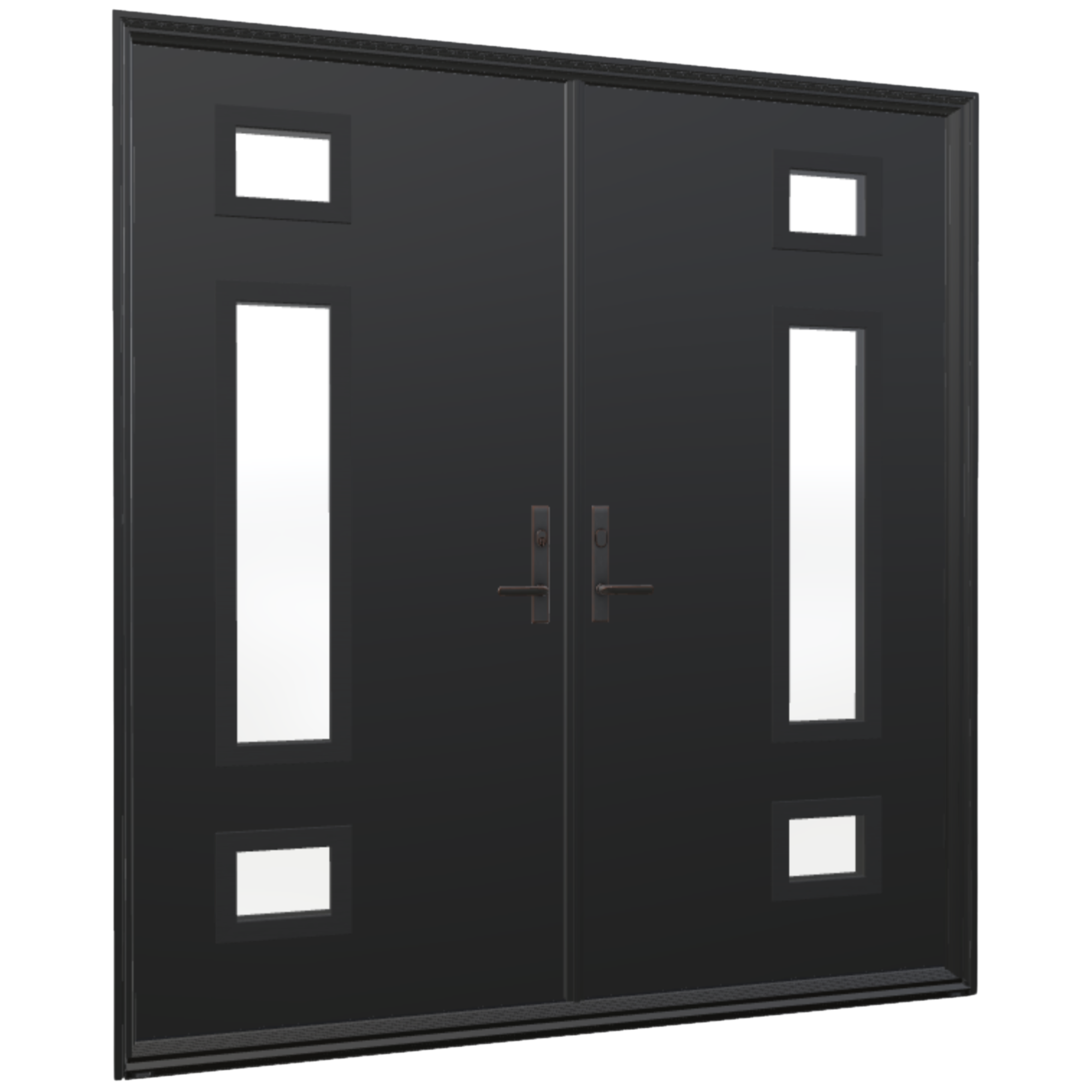

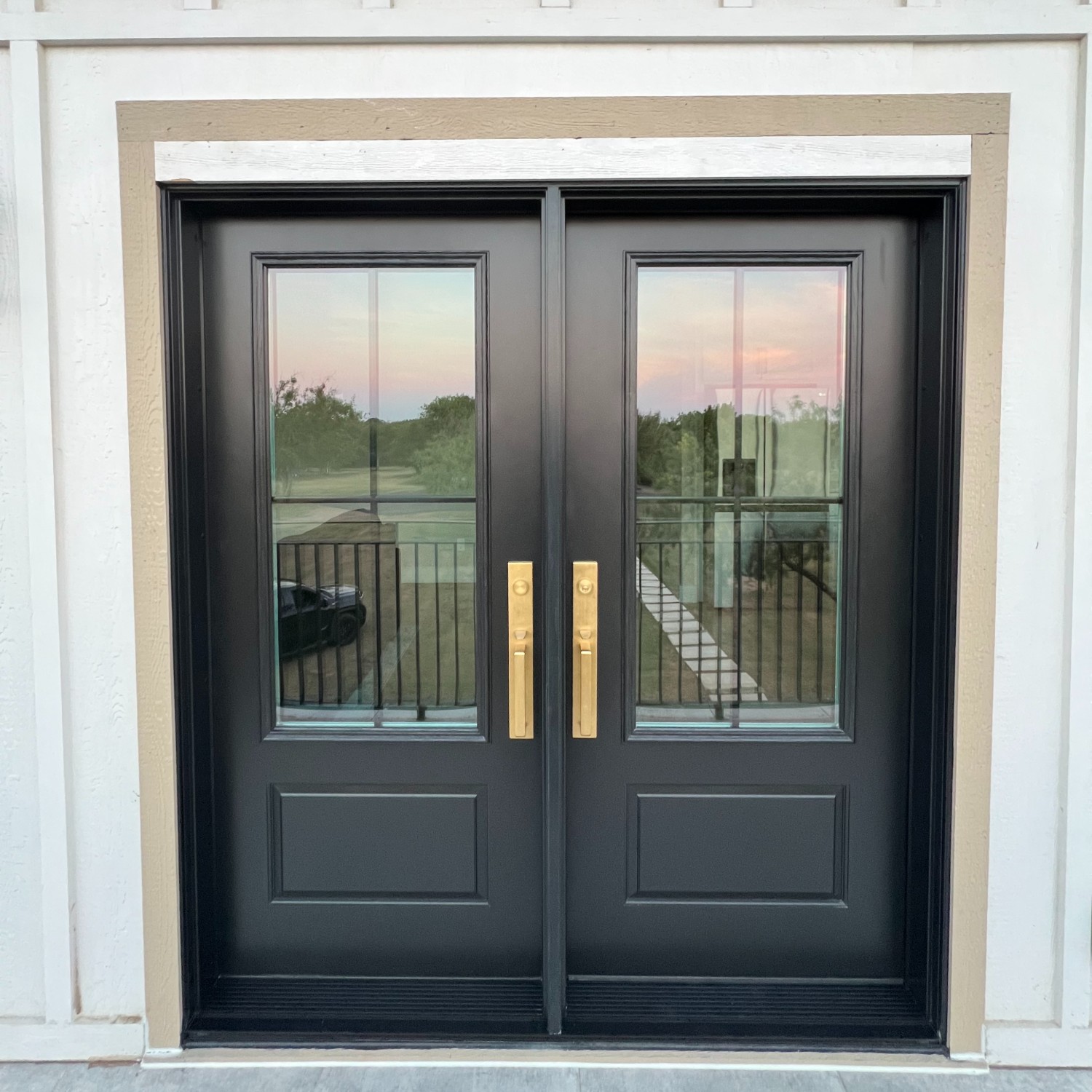

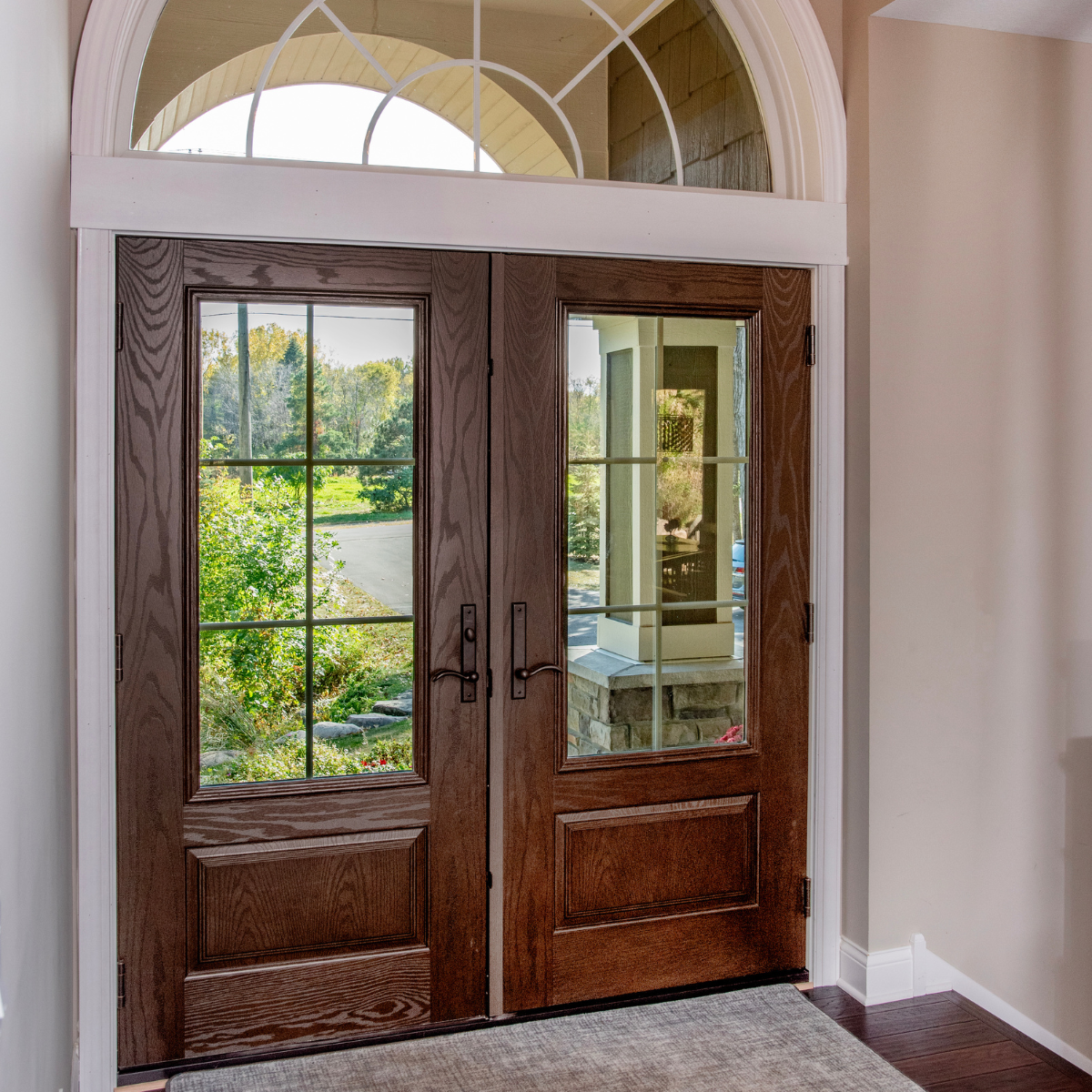

Double doors can also have two hinged, operable panels. One panel is active (the door you open first) and the second is passive. In this case, the panels may only be hinged on the jambs.

Both single and double doors can take a transom window. A transom is a window above the door. Two transom options are available: A rectangular transom with a variety of glass options, including select art glass options. Or, one of 11 non-rectangular ("specialty") windows with one of our energy efficient glass options.

The Ensemble™ entry doors program includes five distinct panel families and dozens of styles for all types of homes.

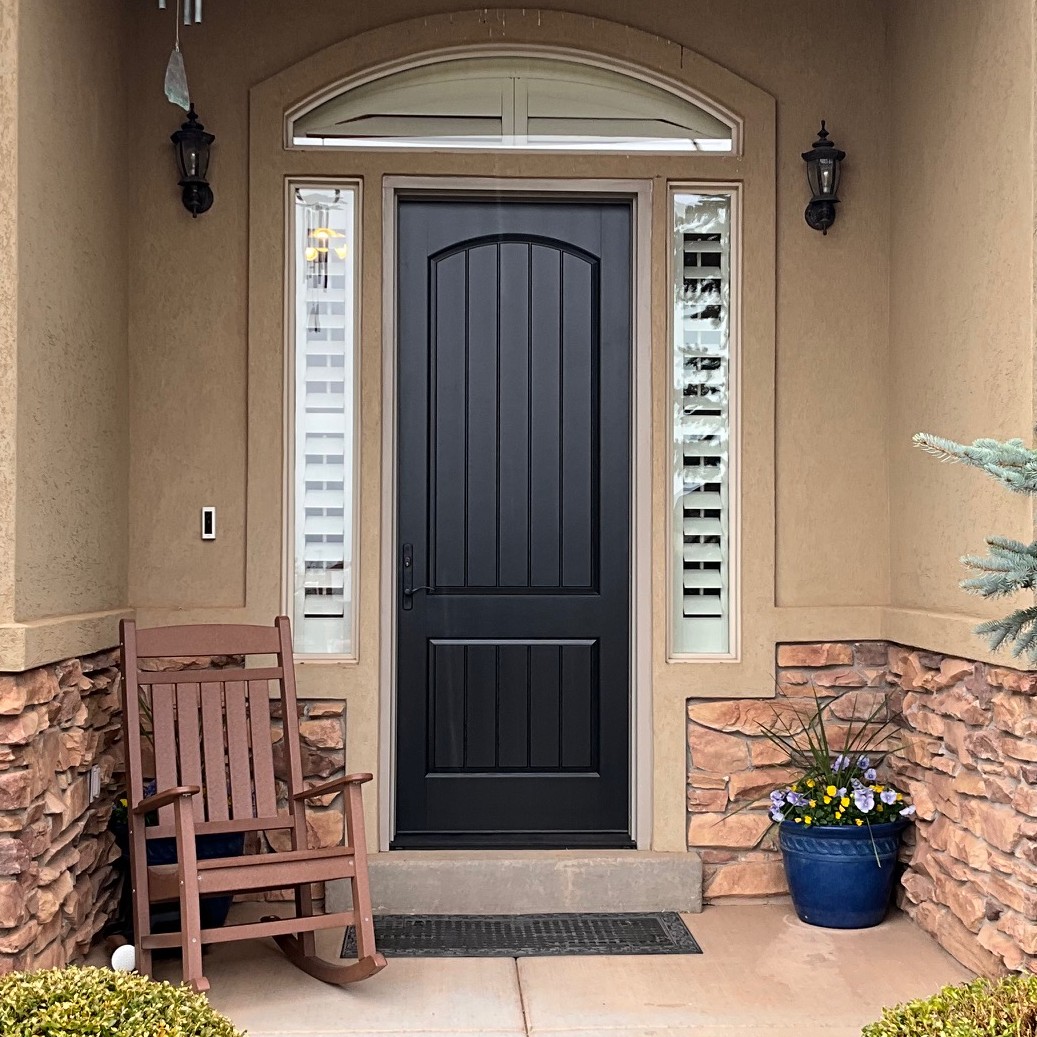

• Solid panel family-No glass; features high-definition panels or flush options.

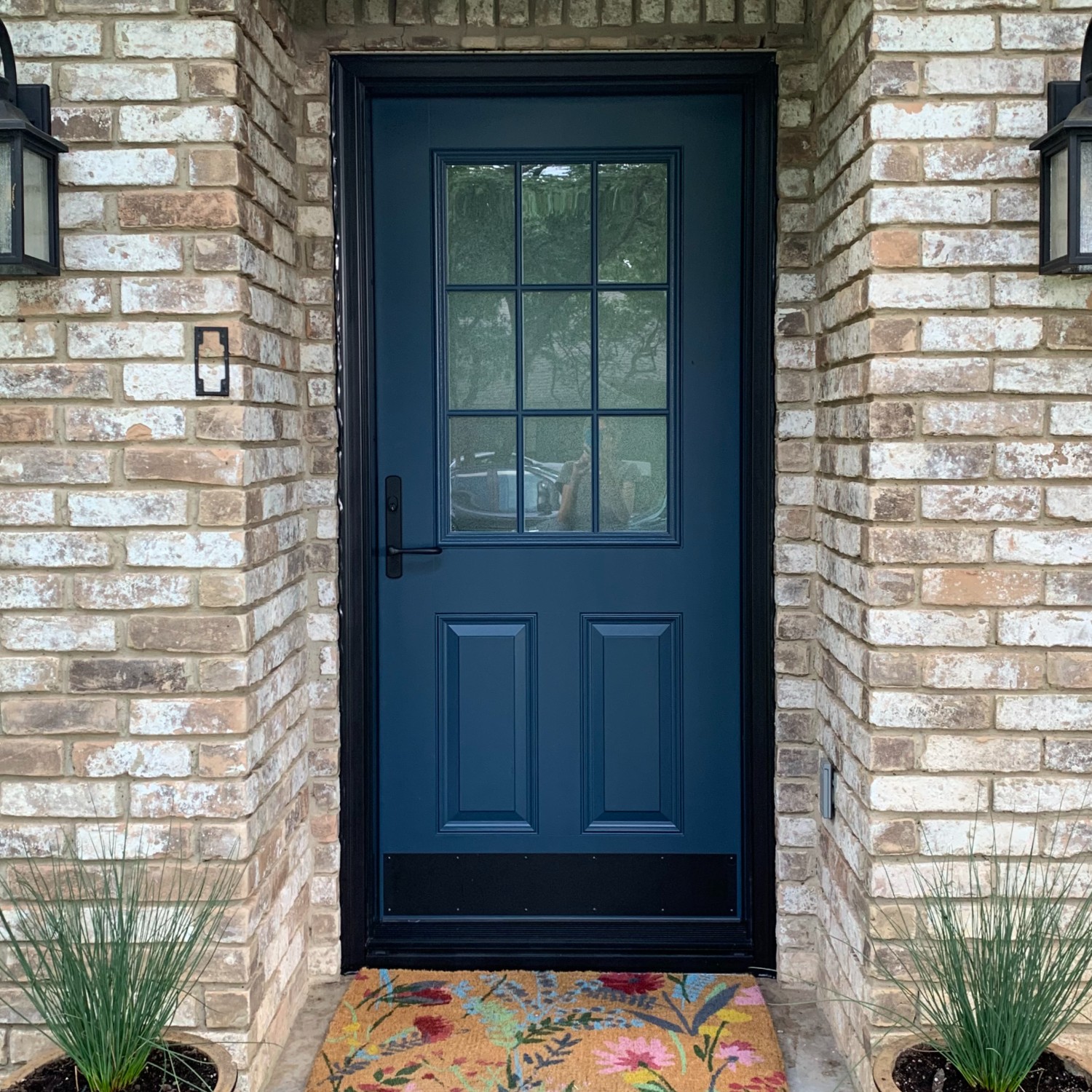

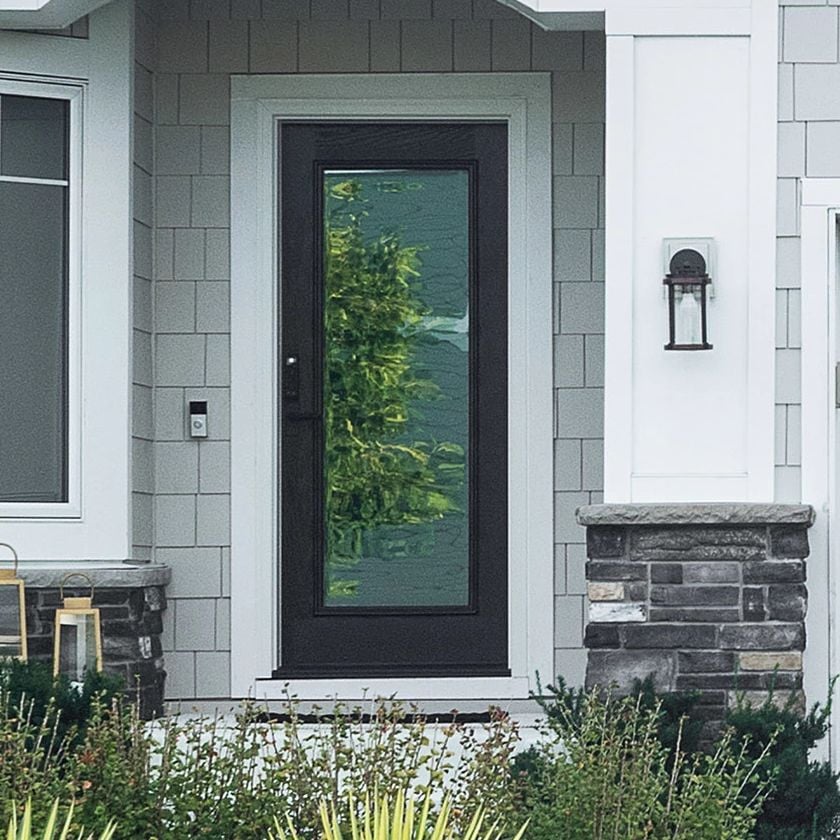

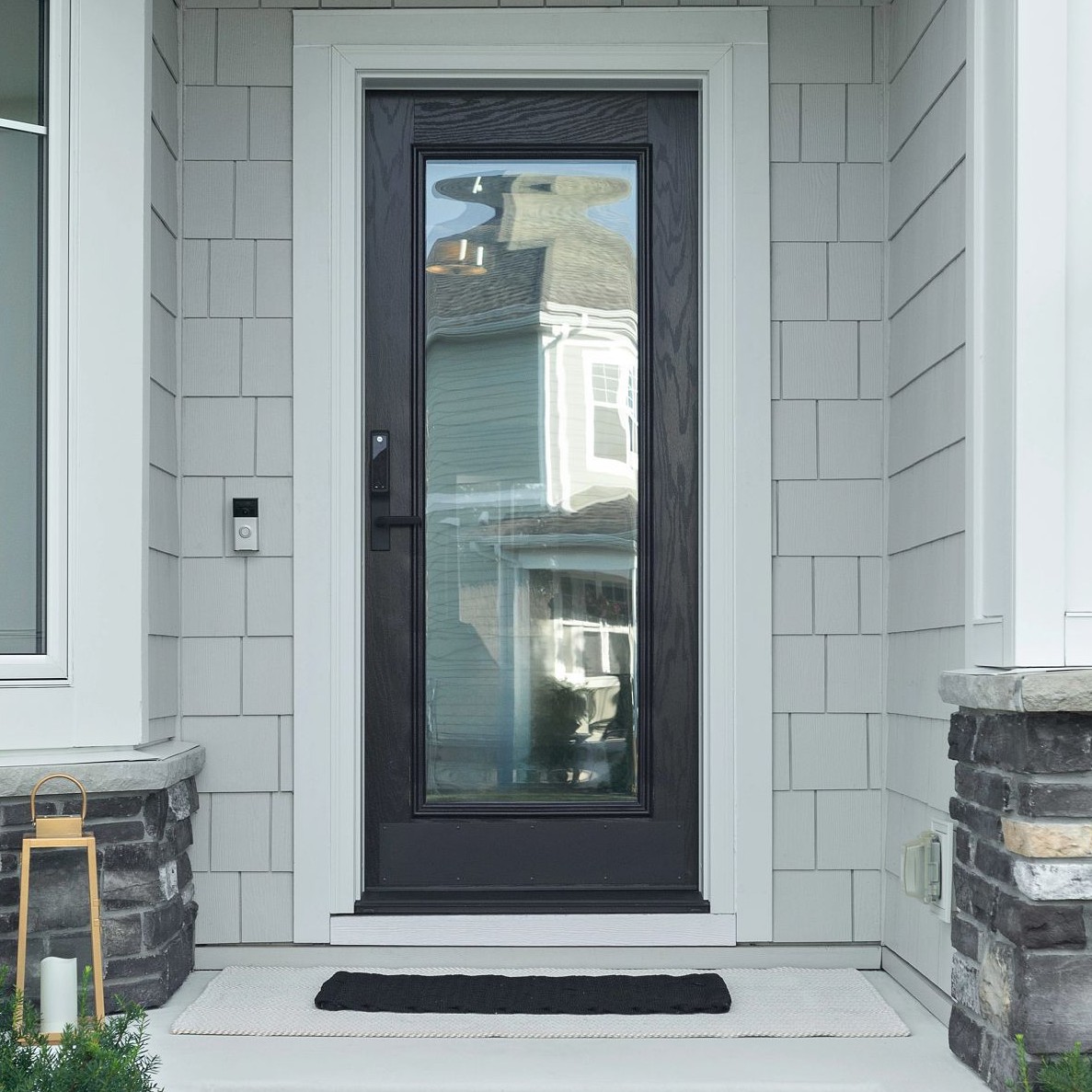

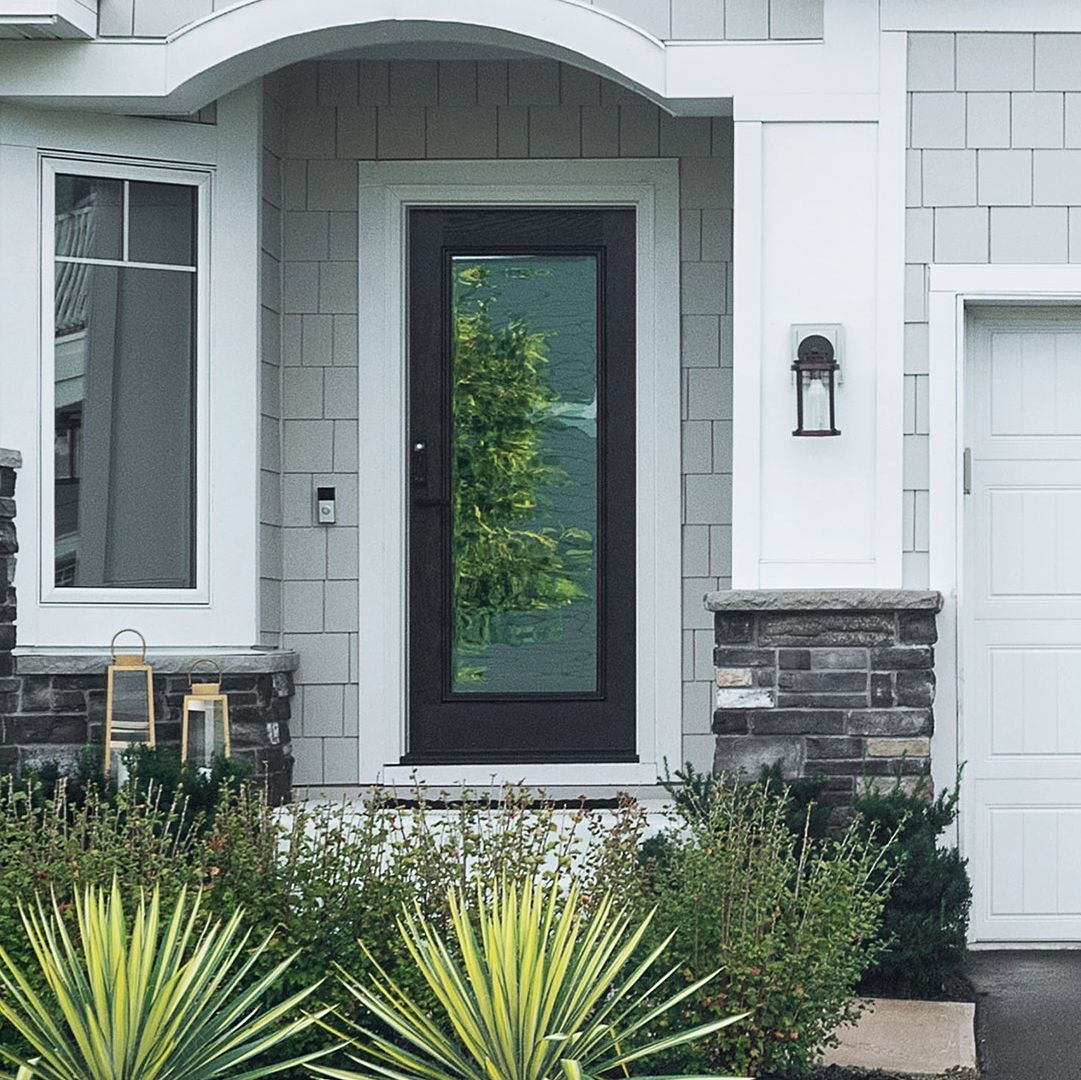

• Full and partial light family-Glass that spans at least half the length and/or width of the panel. May also feature architectural embossments.


• Oval light family-Large, oval-shaped glass options.

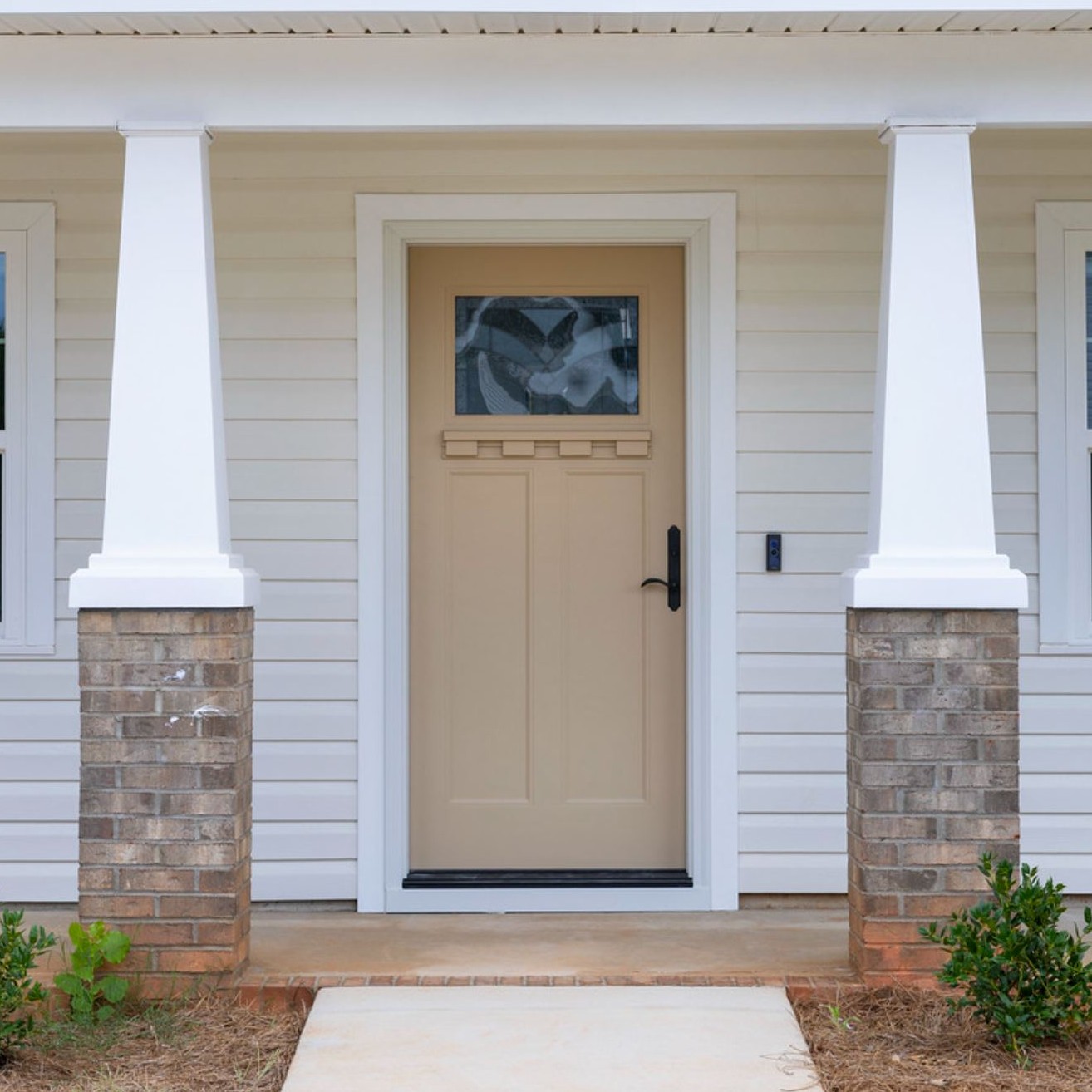

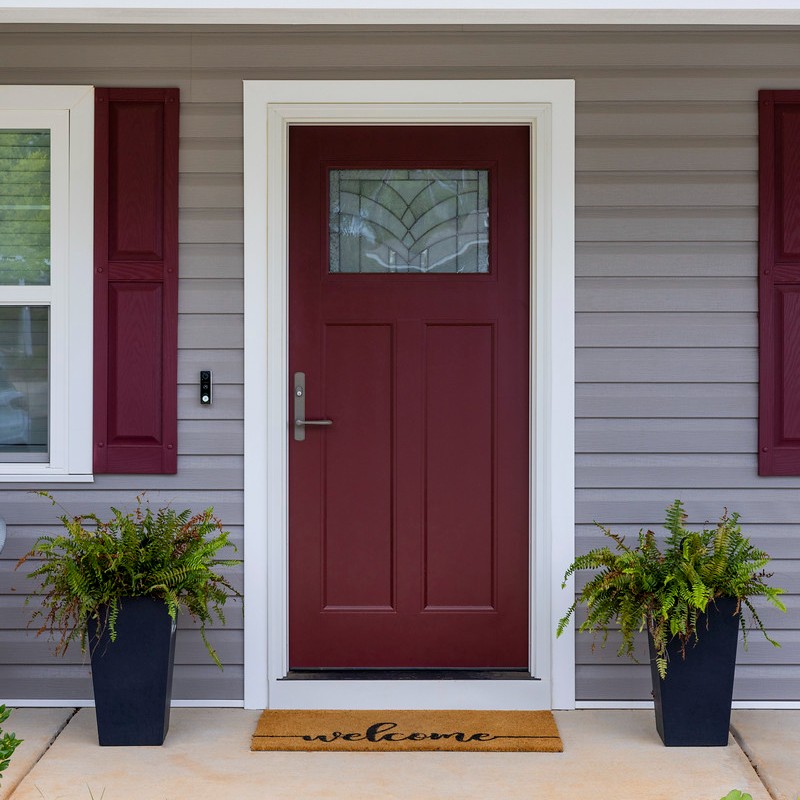

• Craftsman light family-Arched, half-circle, or rectangular glass at top and distinctive, high-definition panels below.


• Specialty light family-One to seven smaller square or rectangular glass lights positioned throughout the door panel

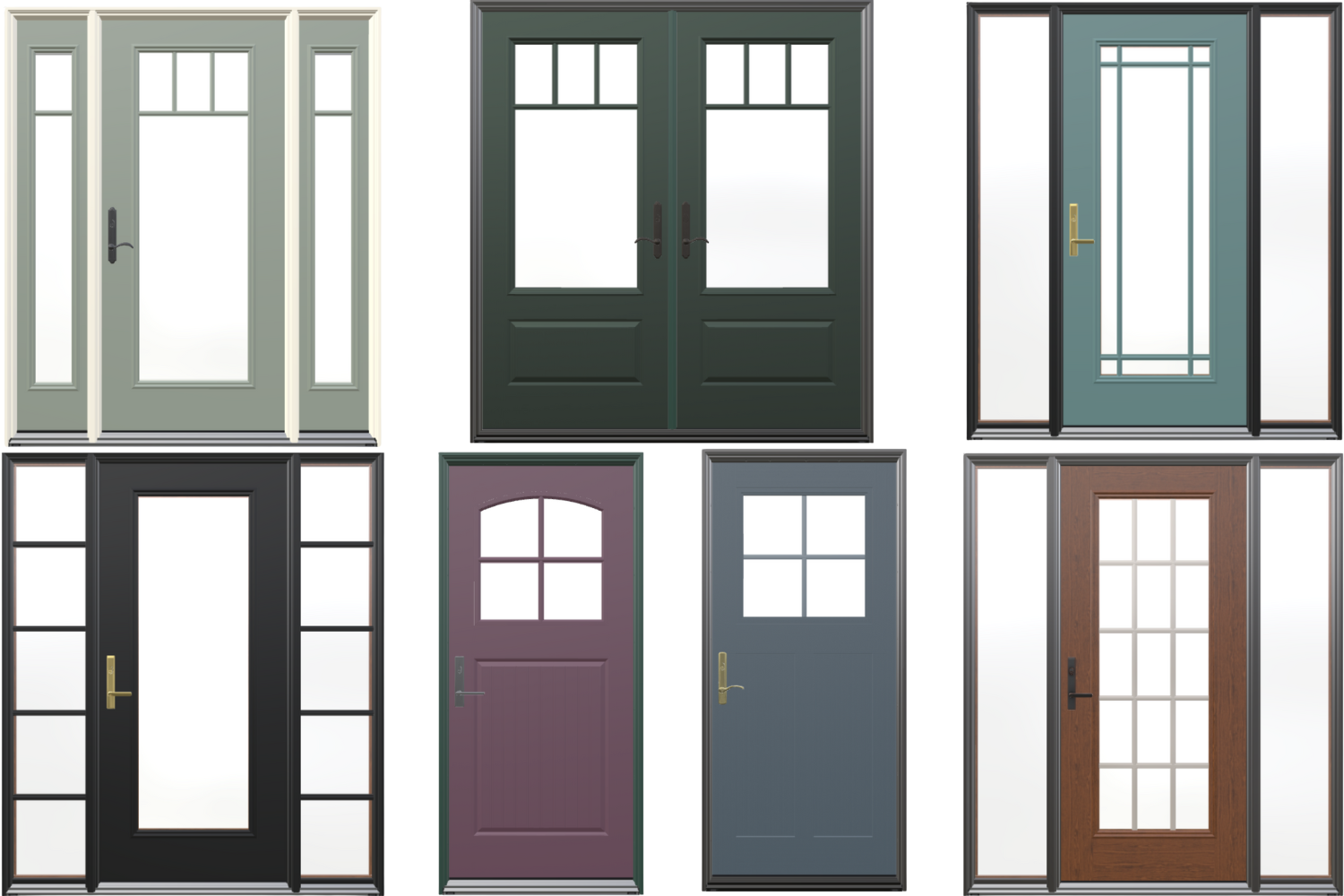

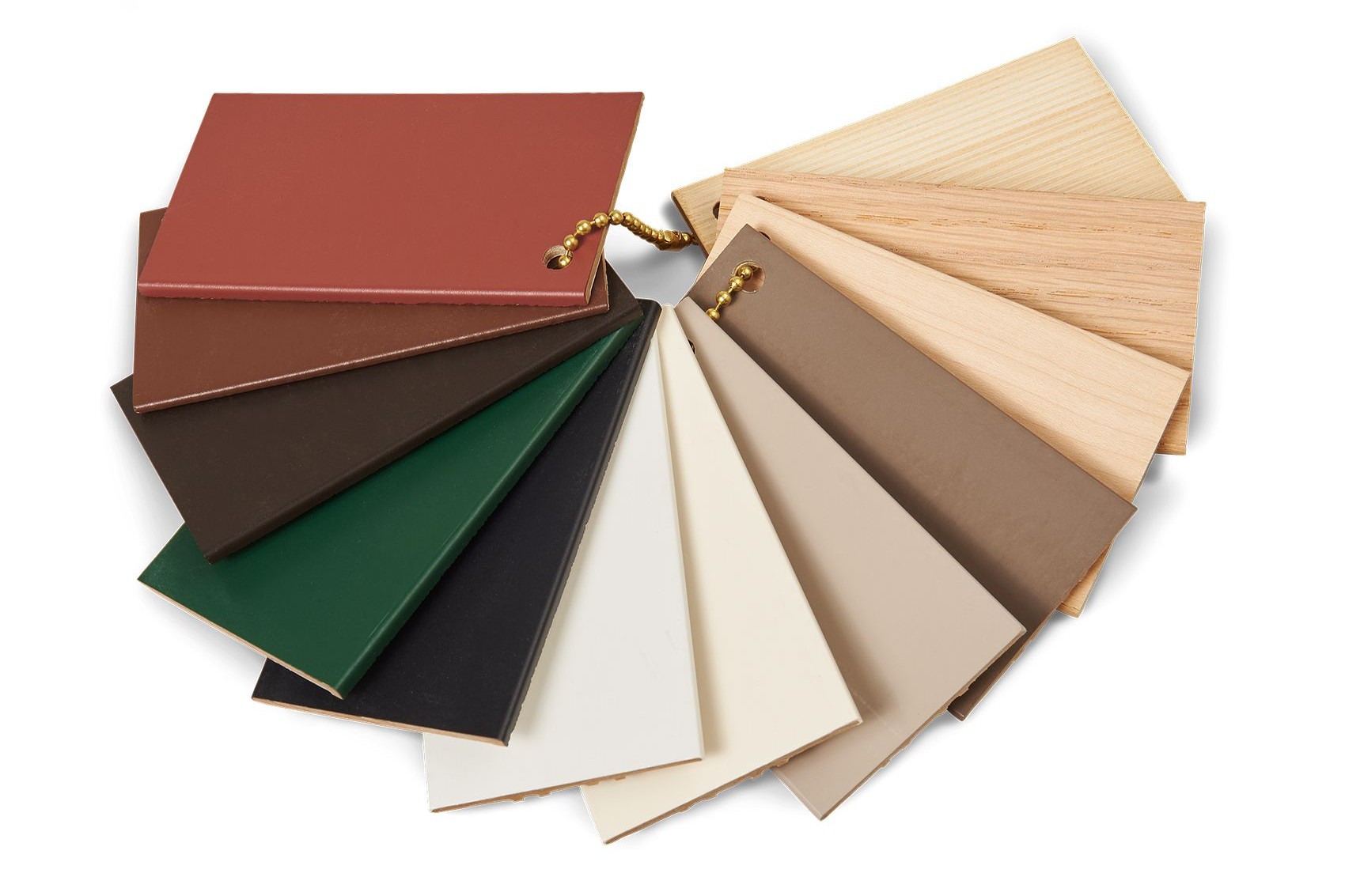

Learn more about the panel family options, as well as the wide range of colors, textures, grilles, and glass choices on our Options page.

You are right--there are a lot of options! We think that's a good thing, but can understand how it might be overwhelming. Seven families, 35 styles, 30 color options, 20 hardware styles, all sorts of locks and other options...where DO you start if you don't know yet what you want?

If you're looking for a little design inspiration or want to see what an Ensemble entry door might look like in your home when it's all tricked out, we have two collections of pre-configured doors that highlight some of our favorite combinations and designs:

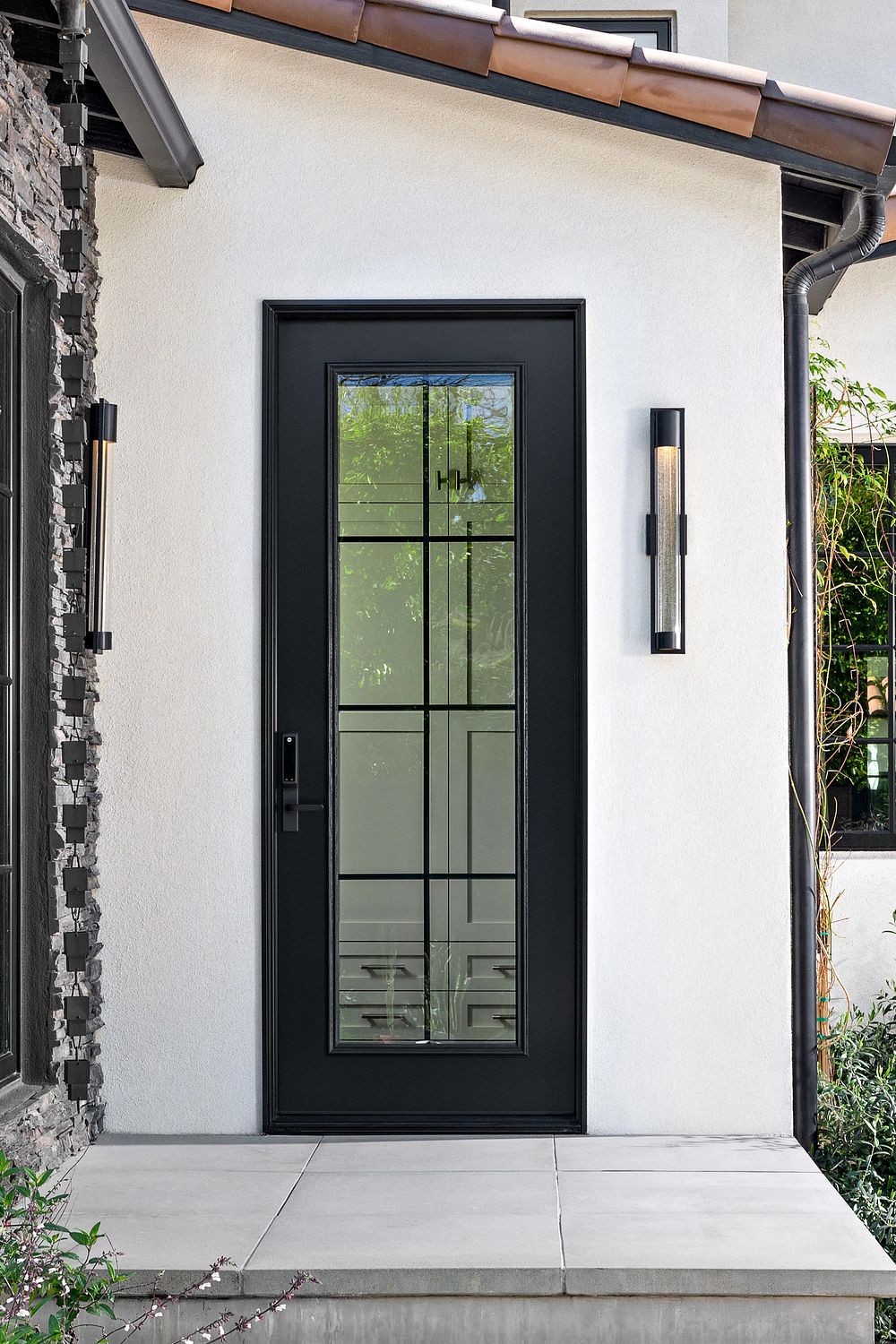

Our Designer Collection features curated combinations created by designers and Brand Ambassadors Breegan Jane, Laurie March, Darren Keefe, Will Taylor, and Liz Marie Galvan. Each drew from their extensive professional experience to contribute three unique entry door designs, ranging from classic elegance to bold contemporary aesthetics.

We put out our annual Trends Collection each year to bring together curated materials, thoughtful details, and styles that pair elevate design with everyday functionality. These doors were created as inspiring starting points for homeowners who want their entryway to reflect the life they’re building—one that’s uniquely their own.

Yes! Ensemble entry doors also help make your home safer and more secure. They provide extra protection against forced entry, which can give you and your family peace of mind.

The dual-composite frames, reinforced panels, and hardware systems are engineered to deliver industry recognized forced-entry resistance* and some of the highest security grades achievable.**

Ensemble doors with a Mortise lock configuration feature:

• Stainless Steel Multi-Point Mortise Locking System
  Latches the door in three places, for a secure, weather-resistant entry.


• Reinforced Composite Panel
  Durable, Laminated Veneered Lumber (LVL)-reinforced fiberglass panel enhances strength and provides robust support for hinges and lock assemblies.


• Routed Hinge Pockets
  Our exclusive, ball-bearing adjustable hinges fit securely into a deep route in the Laminated Veneered Lumber (LVL)-reinforced panel edge, providing a nested hinge leaf for lasting secure attachment.


• Strong Strike and Backer Plates
  Hinges and extra-thick strike plates are attached to the entry door perimeter frame with steel backer plates and heavy-duty machine screws. The steel hardware plates allow for long screws to be driven through the door frame into the rough opening of the home for additional and enduring performance.


• Solid Wood Lock Block
  A16-inch, solid-wood lock block supports and protects the stainless-steel lock cartridge and built-in deadbolt. The multi-point latch contains integral triggered-overthrow latch bolts that deeply engage the frame for added panel retention.

^{*When independently tested per AAMA 1304-18: Voluntary Specification for Determining Forced Entry Resistance of Side-Hinged Door Systems, all configurations with a deadbolt (cross-bore or mortise) achieve a pass rating.}

^{**For residential entry doors when independently tested per ASTM F476: Standard Test Method for Security of Swinging Door Assemblies, cylinder body pull, cylinder pull and jamb spread tests achieve Grade 30, with all other referenced tests achieving Grade 40 when configured with a mortise locking assembly.}

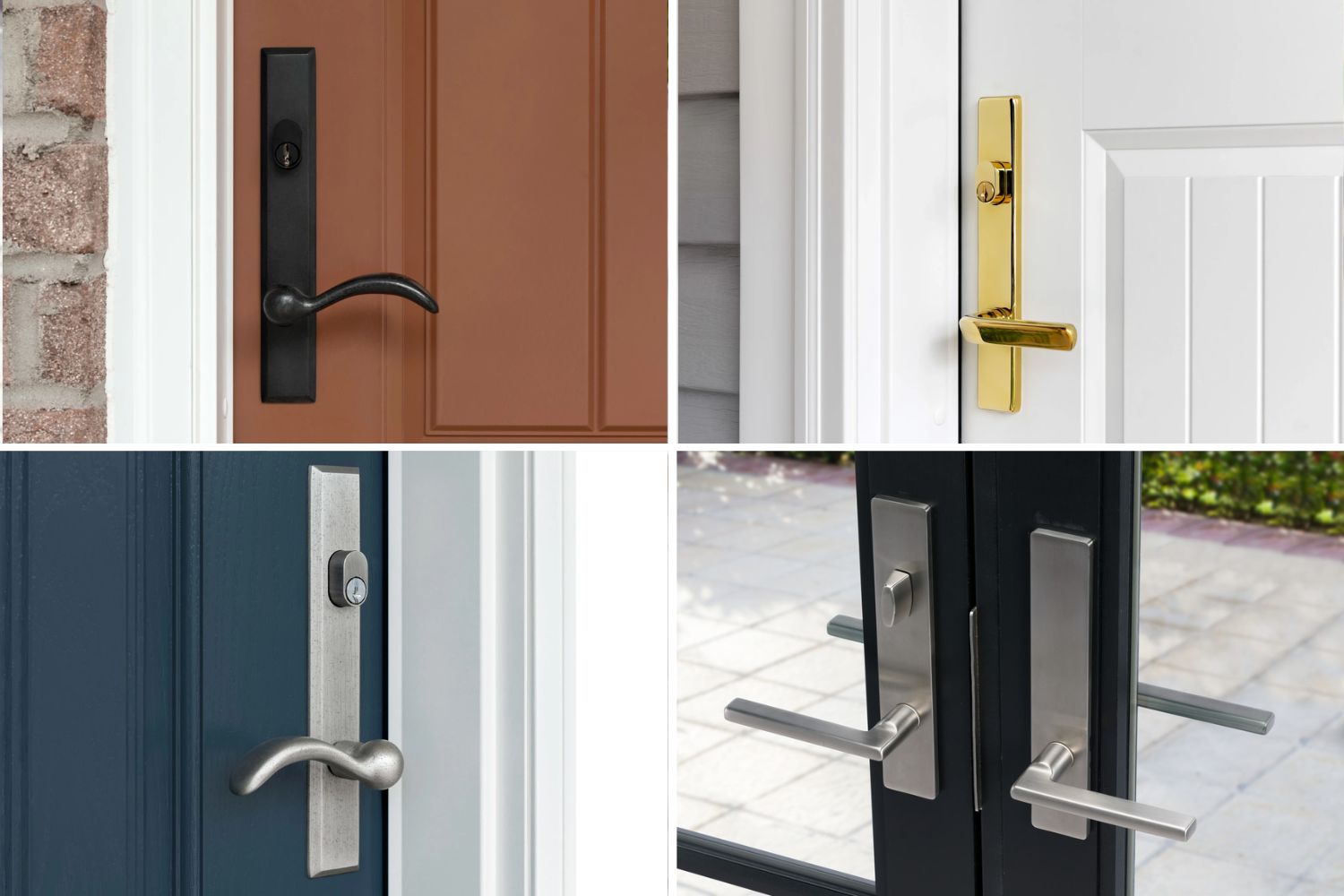

We offer a variety of locking hardware options.

For your Ensemble entry door, you canchoose either a cross-bore locking system or a mortise lock system.

Cross-bore locks

Cross-bore, or cylindrical, locks are found in most U.S. homes. This affordably priced option features a single locking latch and optional deadbolt.

Mortise locks are our most secure locks, providing homes with a higher level of security than common cross-bore locks. Developed and widely used in Europe, in the US, they’re the lock of choice in commercial settings and are rapidly gaining popularity with homeowners.

Renewal by Andersen offers robust, German-engineered mortise locks for our Ensemble™ entry door systems. All feature a stainless steel cartridge with a built-in latch and lock bolt, which nests snugly in the edge of the door.

We offer both a single-point mortise lock and a multi-point.

The single-point mortise lock is a single cartridge crafted of durable stainless steel. It features one precision latch and one strong lock bolt.

The multi-point locking system is our most secure lock. This stainless steel multi-point locking system latches the door in three places and engages the frame deeper than a standard latch. The result: a more secure, more weather-resistant home entry.

When configured with this locking assembly, our entry doors achieve the highest level of security testing*—meaning they can help resist break-ins and intruders**—a level of protection and peace of mind few other entry doors provide.

Smart lock hardware

Smart lock hardware is available for both mortise and cross-bore locks.

For mortise locks, all smart hardware configurations feature a keyless touchscreen and multiple connectivity options.

Highlights include:

• One-touch locking. Simply tap keypad, no keys needed.
• Key free. No lost keys and no pick and bump break-ins.
• Battery back-up. Never lose power. The lock can be energized with a 9V battery.
• Remote access monitor. Lock and unlock your door from anywhere with optional Wi-Fi and Bluetooth hardware via the Yale Access App or Z-Wave compatible app.

Smart hardware configurations are available for both single and double cross-bore configurations.

Double cross-bore options act as a smart deadbolt and are installed alongside a standard option cross-bore knob.

Smart cross-bore lever sets and deadbolts are both available with a keyed cylinder, providing both smart and traditional entry options.

Of note, upgrades are only available through third party. Unlike mortise options, any upgrades desired for cross-bore hardware must be purchased and installed through a third party.

^{*When independently tested per AAMA 1304-18: Voluntary Specification for Determining Forced Entry Resistance of Side-Hinged Door Systems, all configurations with a deadbolt (cross-bore or mortise) achieve a pass rating.}

^{**For residential entry doors when independently tested per ASTM F476: Standard Test Method for Security of Swinging Door Assemblies, cylinder body pull, cylinder pull and jamb spread tests achieve Grade 30, with all other referenced tests achieving Grade 40 when configured with a mortise locking assembly.}

What's the difference between cross-bore locks and mortise locks?

Cross-bore locks

Cross-bore, or cylindrical, locks are found in most U.S. homes. They’re easy to use, affordably priced and feature a single locking latch and optional deadbolt. The hardware operates through two cross-bored holes in the door panel:

1. The large hole drilled through the face of the panel to accept the handle mechanism.

2. The latch bore hole, drilled from the side of the door into the larger hole to allow the latch and deadbolts to engage the handle mechanism.

There are two types of cross-bore locking assemblies.

Single cross bore features only the door handle or knob and connects to a latch bolt that may or may not lock.

Double cross bore has two cross-bore fabrications. The first contains a door handle or knob that connects to a latch, while the second is for the deadbolt lock.

Mortise locks are our most secure locks, providing homes with a higher level of security than common cross-bore locks. Renowned for their durability and security, mortise locks were developed by craftsmen in Europe and are widely used there today. In the US, they’re the lock of choice in commercial settings and are rapidly gaining popularity with homeowners.

We offer both a single-point mortise lock and a multi-point.

The single-point mortise lock is a single cartridge crafted of durable stainless steel. It features one precision latch and one strong lock bolt.

The multi-point locking system is the more secure lock. This stainless steel multi-point locking system latches the door in three places and engages the frame deeper than a standard latch.

A door mullion is the "bar" where two parts of the door system are joined together. You can have an integral mullion between a sidelight and the door panel, for example. In a double door with a single active panel, the wo doors are in a single frame separated by an integral mullion. In all of the above examples, the door can be hinged on the mullion or hinged opposite it on the frame.

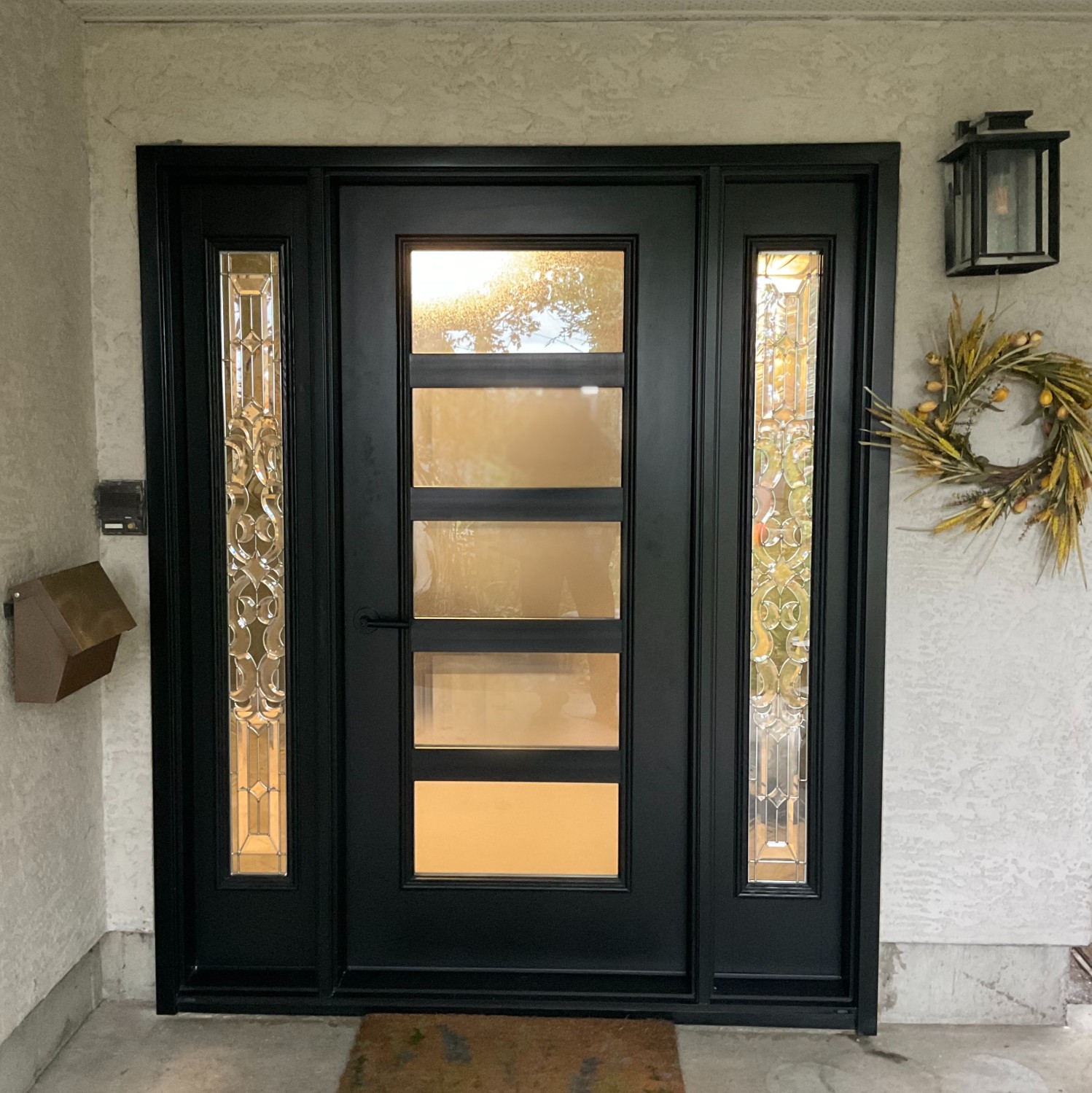

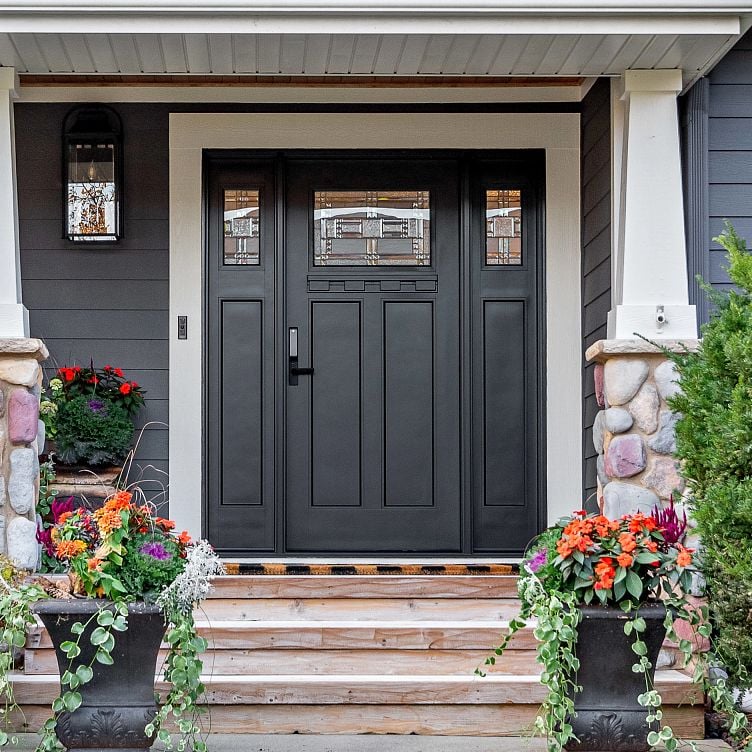

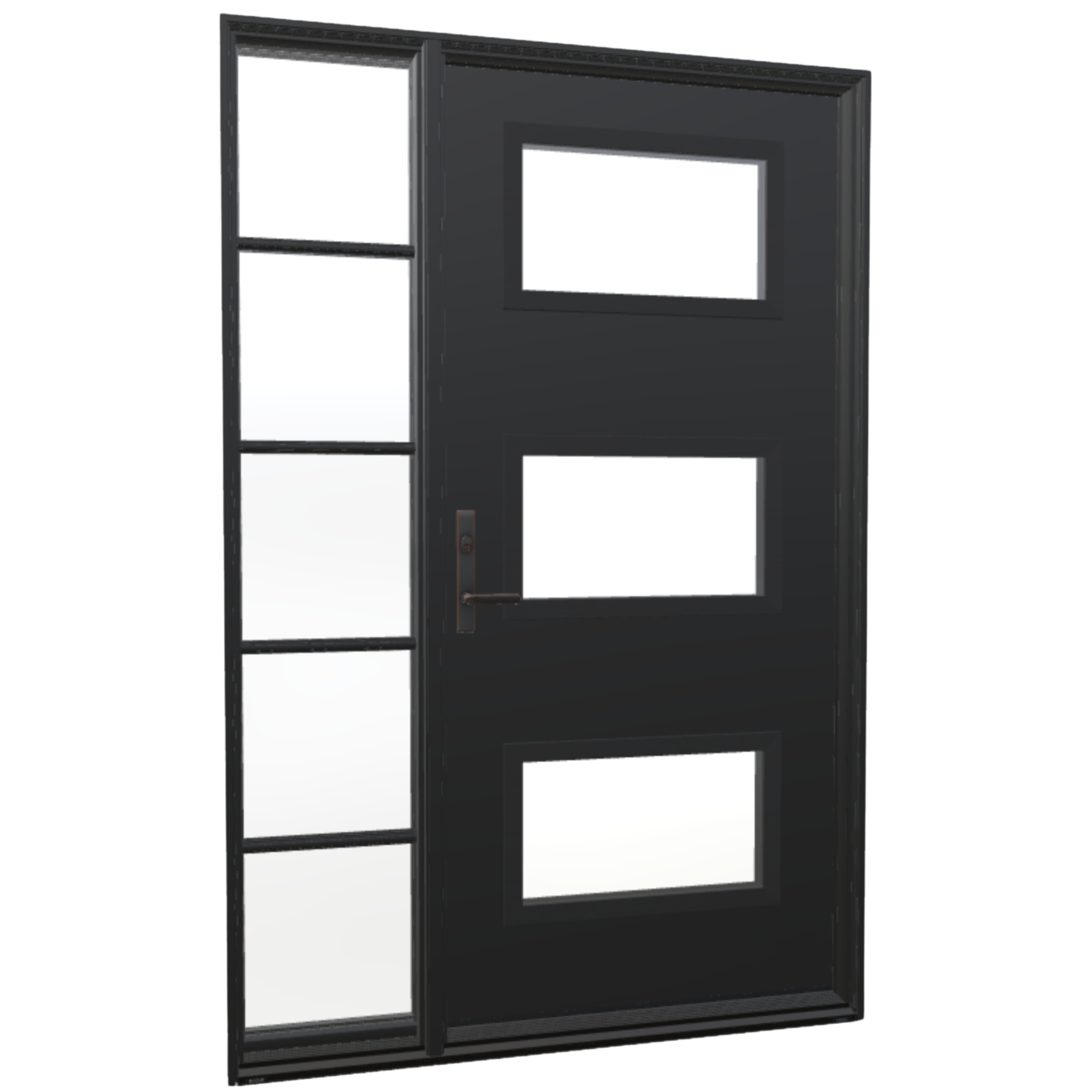

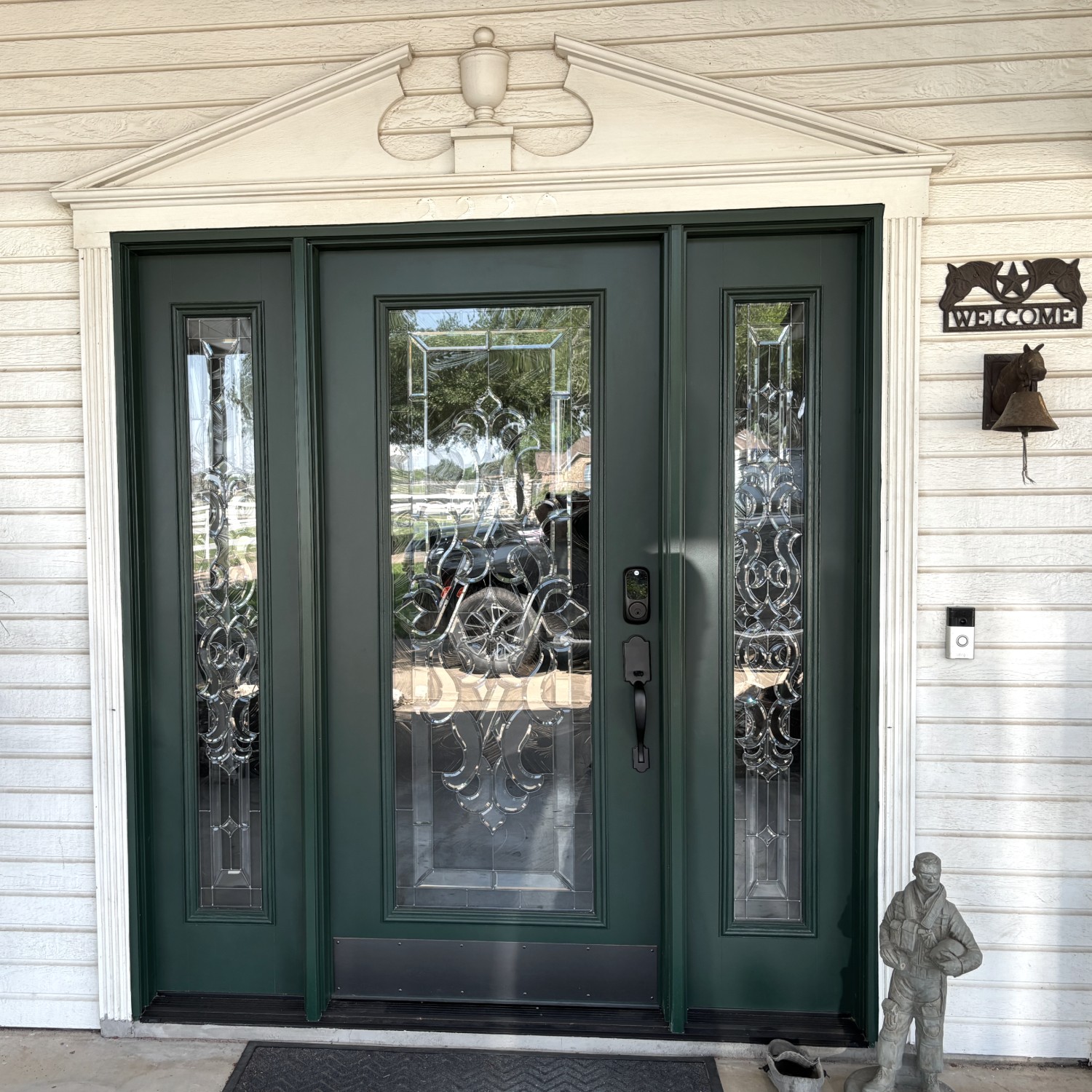

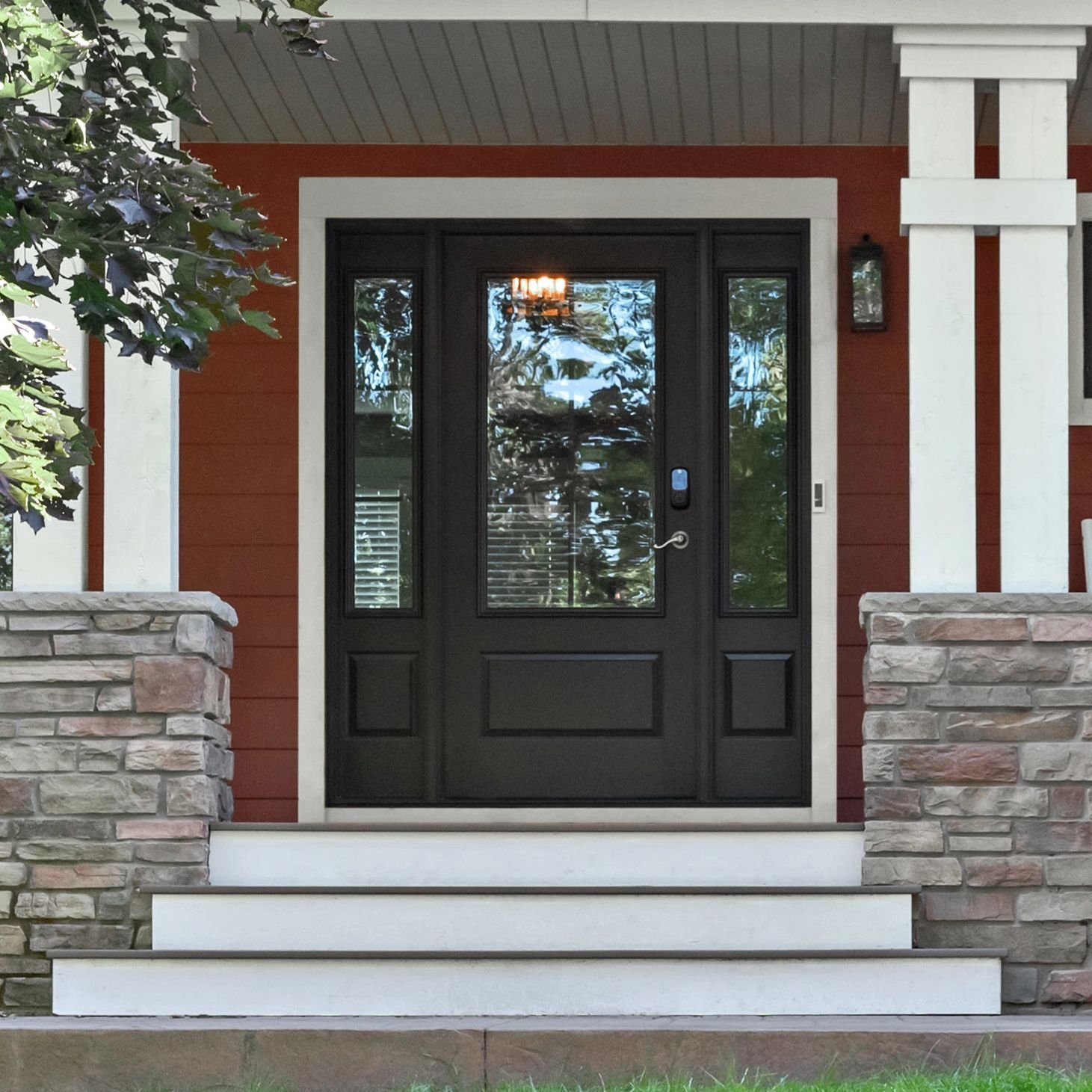

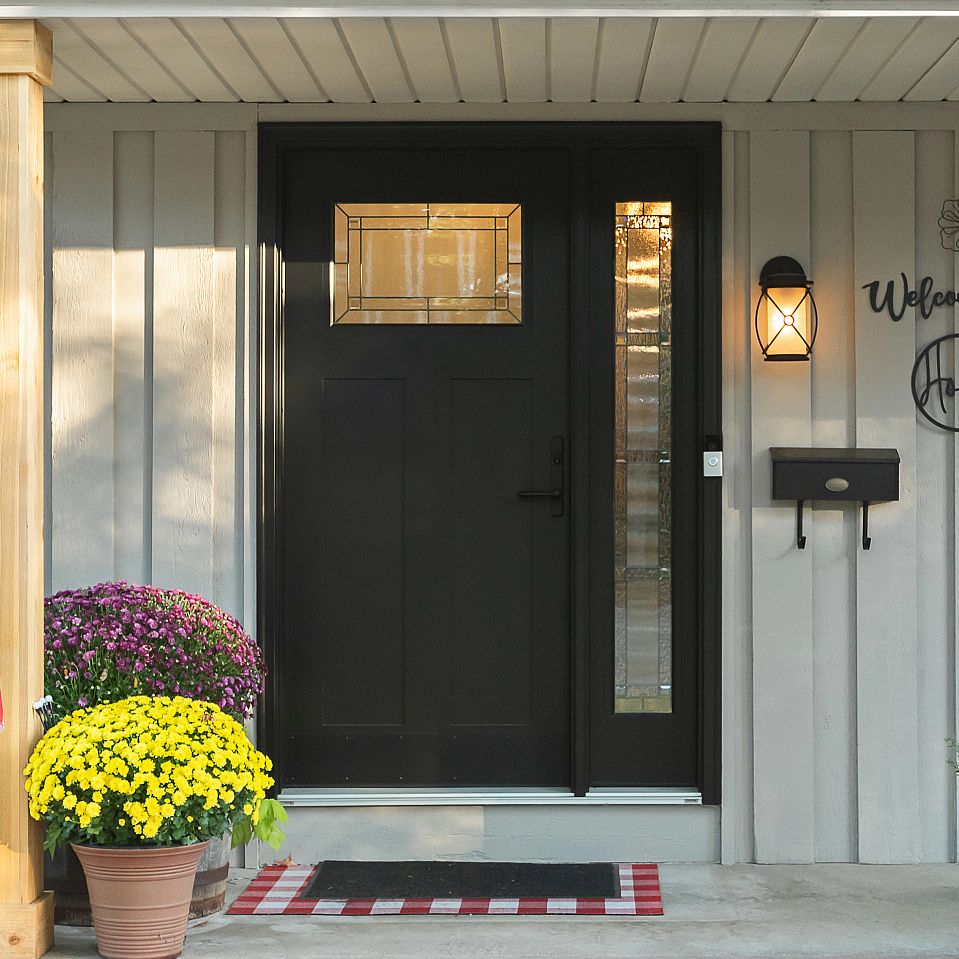

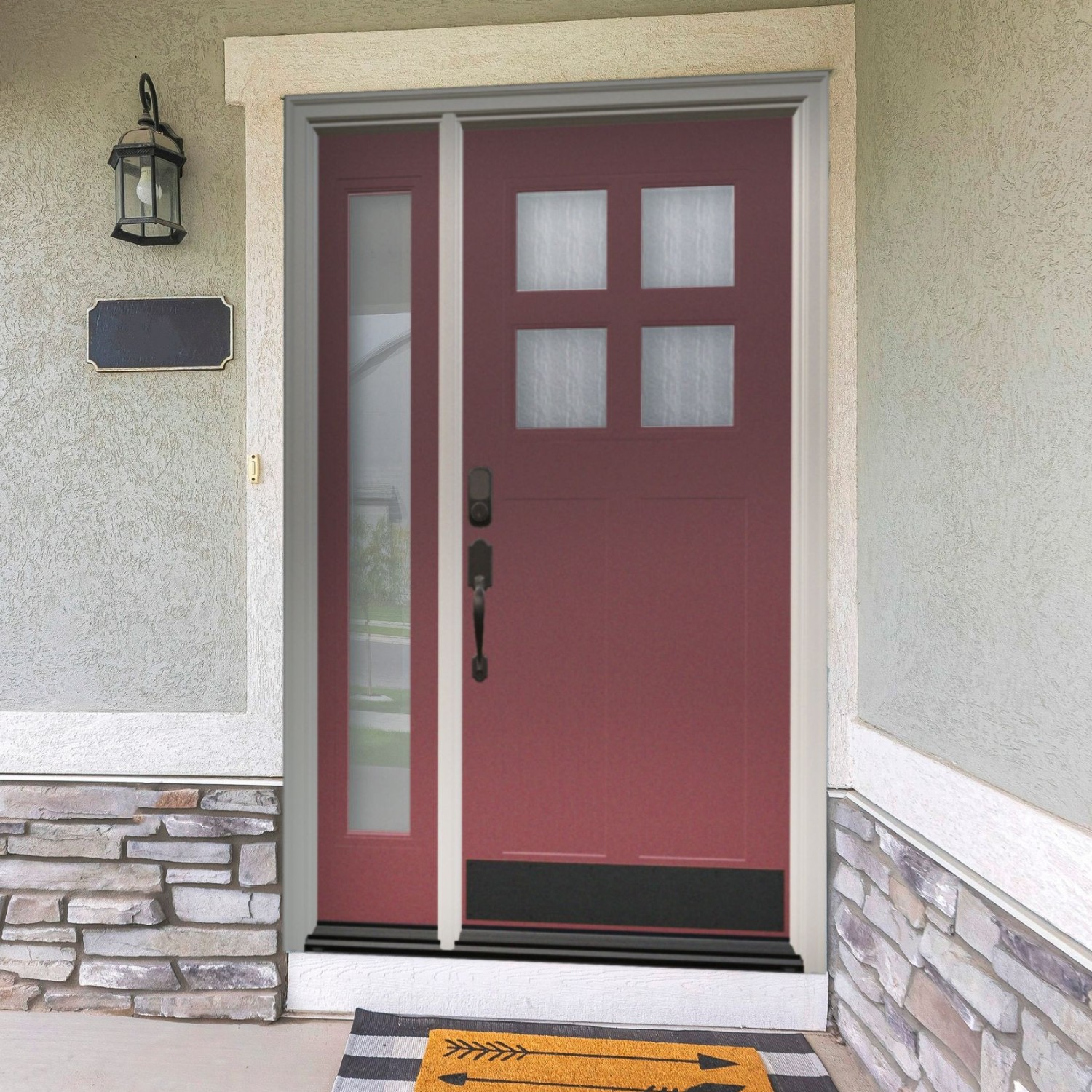

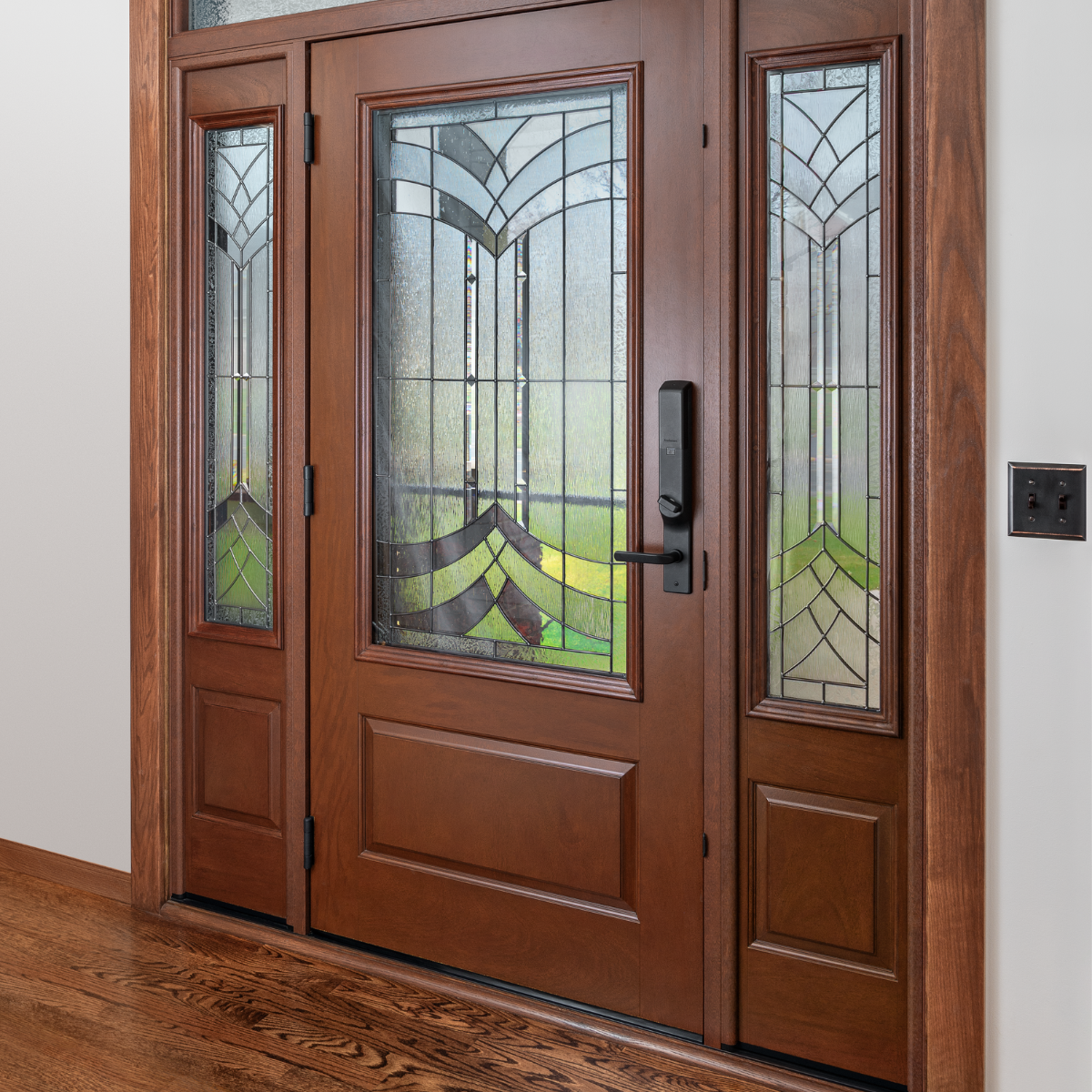

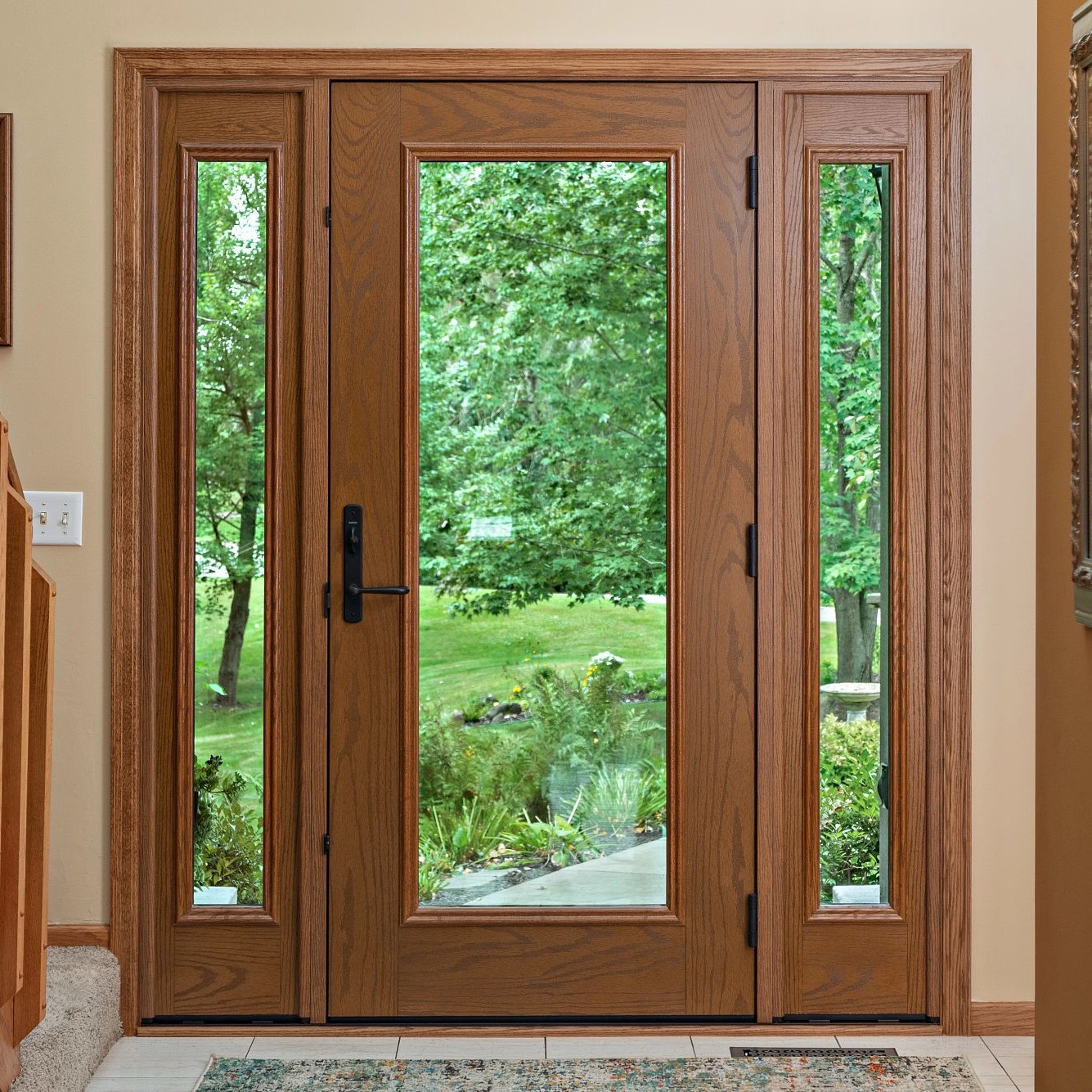

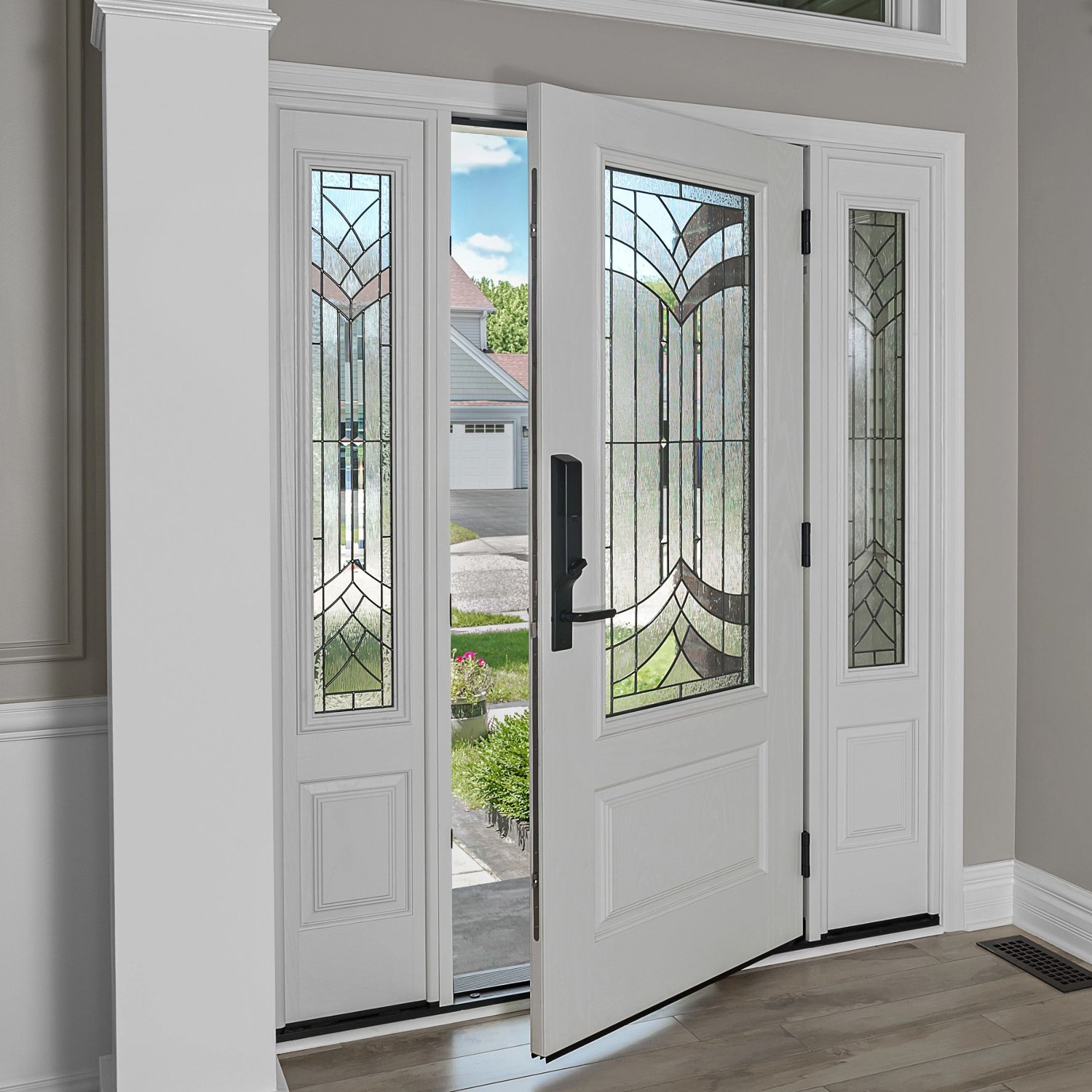

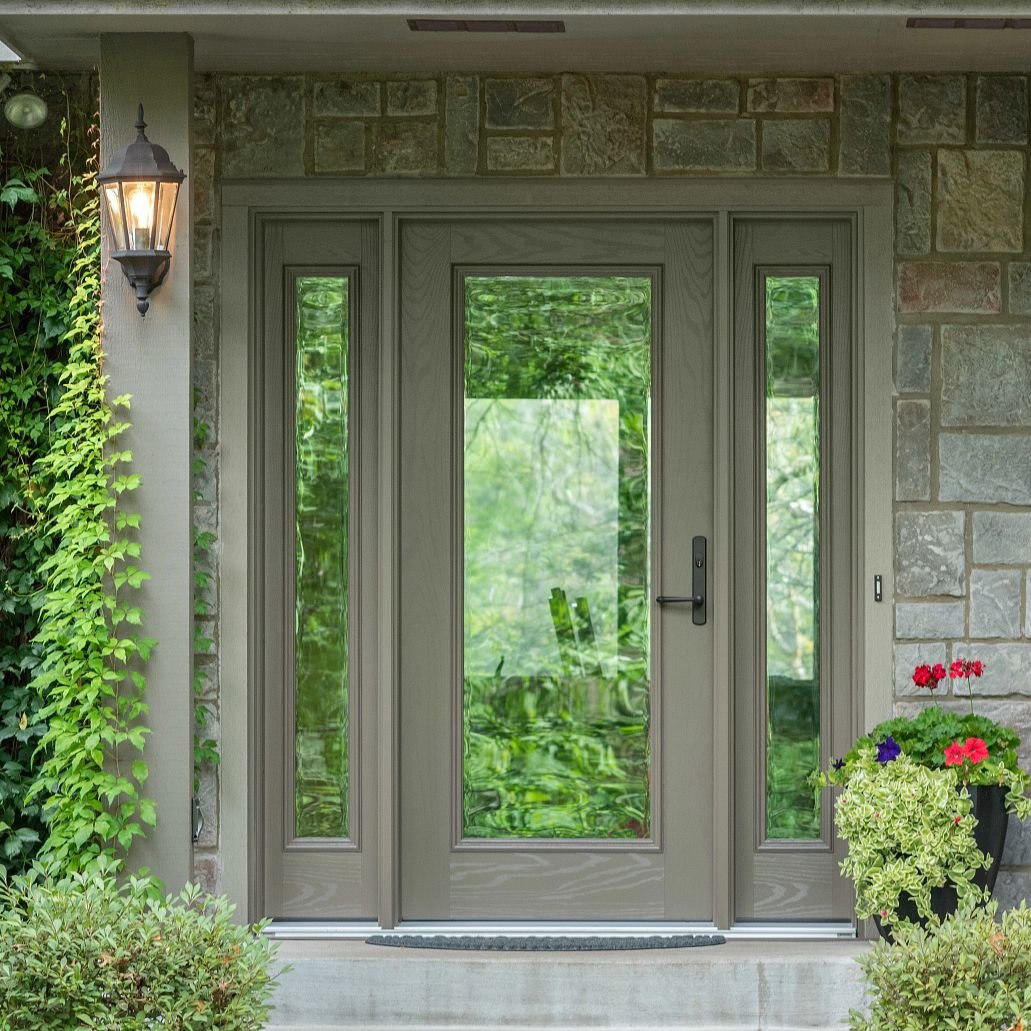

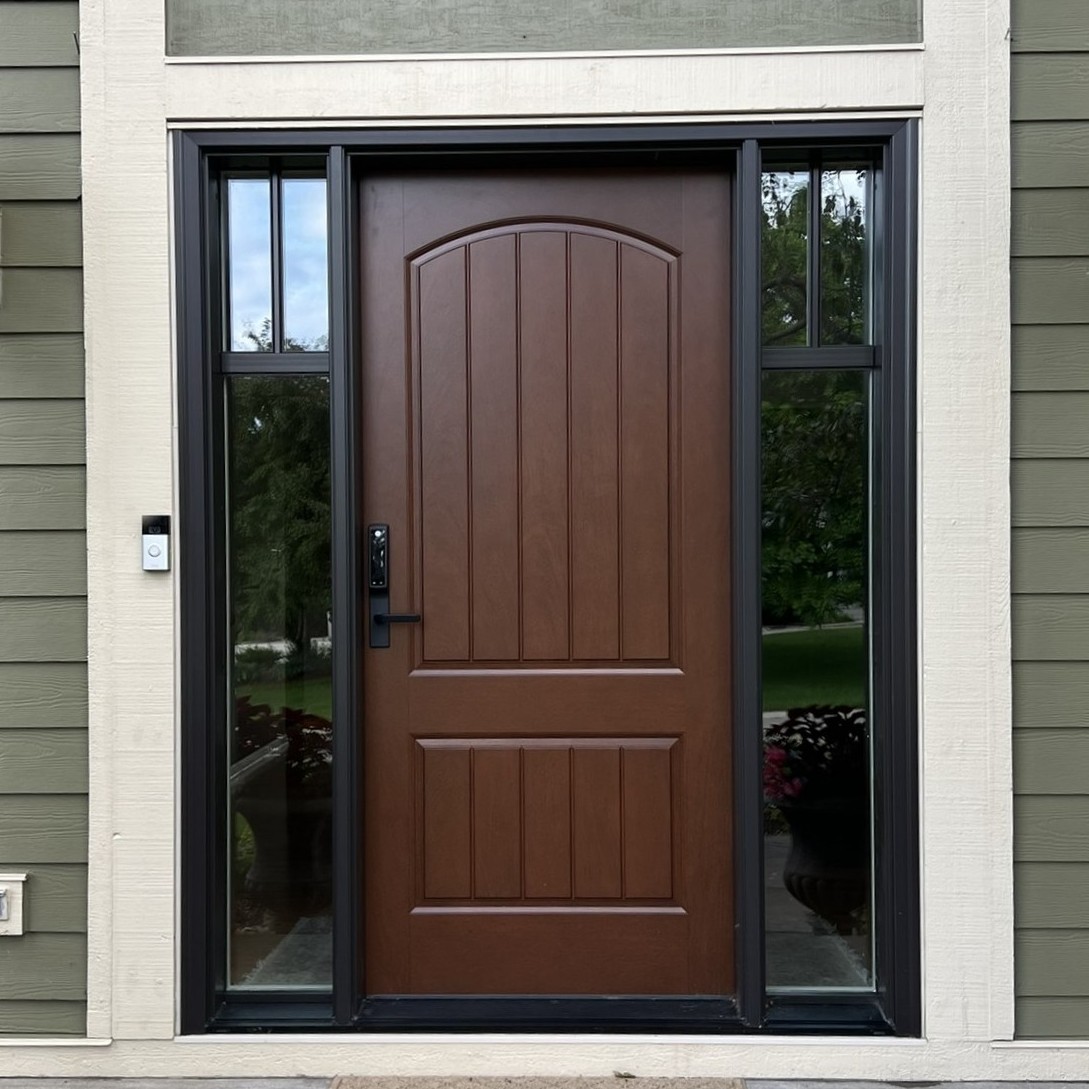

A sidelight is a section of glass flanking the door. These sections can be full glass (direct-set) or a smaller section of glass positioned within its own panel (panel-set).

Sidelights are like windows—depending on which type you choose, there’s a whole host of additional customizations, including grille patterns and clear, patterned, or art glass in numerous shapes and sizes to complement your preferred door panel.

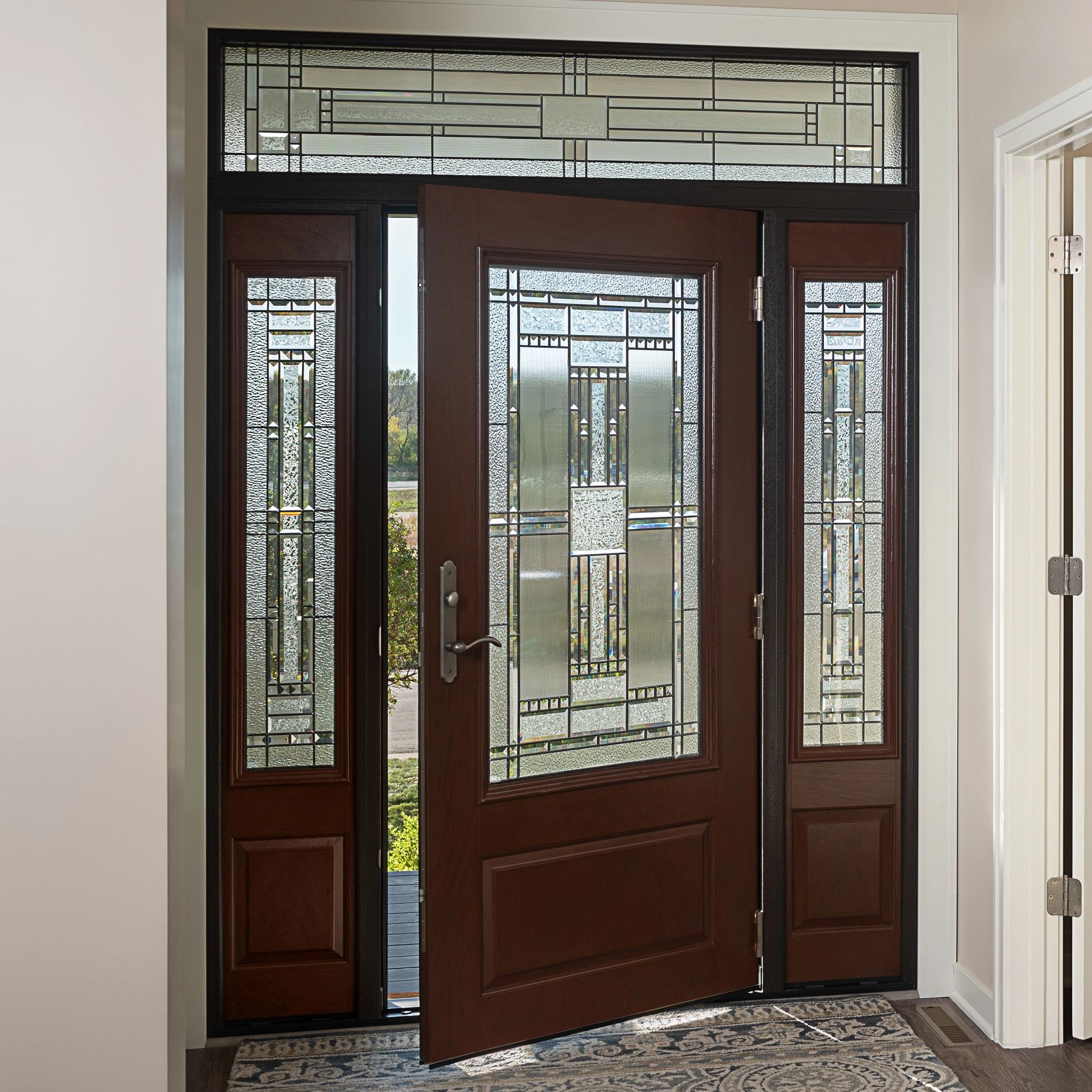

Both single and double doors can take a transom window. A transom is a window above the door. Two transom options are available: A rectangular transom with a variety of glass options, including select art glass options. Or, one of 11 non-rectangular ("specialty") windows with one of our energy efficient glass options.

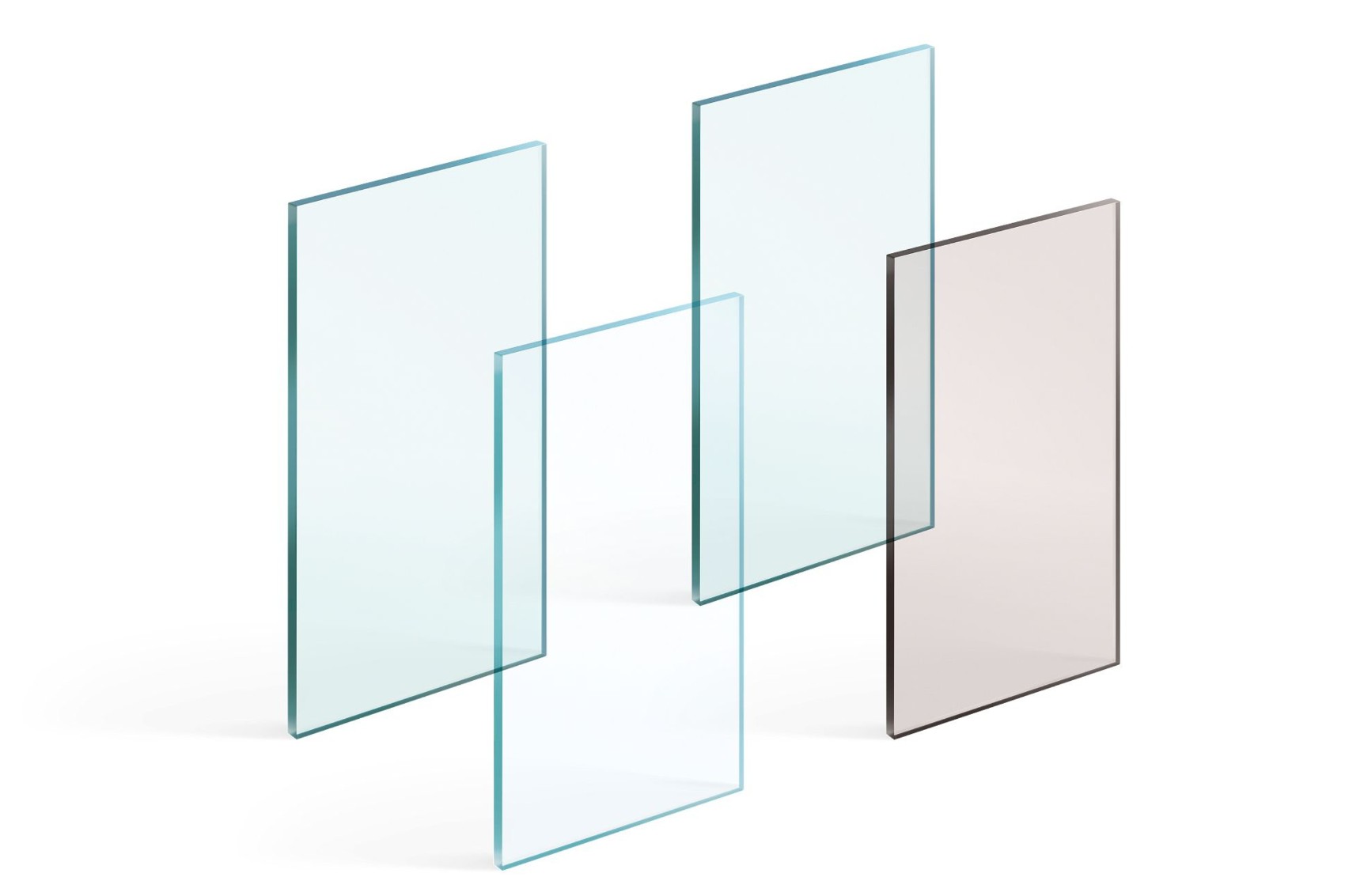

Yes! You can work with your Design Consultant to decide which type of high-performance glass option is right for your home and climate zone.

Options include:

For even greater energy performance, triple-pane glass is available in these options:

Additional options may be available; ask your Design Consultant for more information on choosing triple pane.

Visit the Glass Options page to learn more about each of the different types of glass available.

Just like when we talk about windows and patio doors, when we talk about the energy efficiency of front entry doors, we have to consider the whole picture—from the frame to the glass to the installation.

Our Ensemble^® entry doors' excellent insulating properties, weathertight seals, and a patented Andersen driven-rain-management sill system earn our single-panel entry doors Performance Grade (PG) and NFRC certifications. The panels are also foam-filled to maximize the energy performance.

Plus, our entry doors offer a wide variety of glass options to suit most every climate zone, including dual- and triple-pane options, and numerous coating types for cold climates, warm sunny climates, and everything in between. Learn more about the benefits of our available glass options here.

And of course, installation is paramount. The best windows and doors will do you a disservice if they are not installed correctly and professionally. Improperly installed product can lead to damage of your home and door, as well as gaps, air infiltration, and more. At Renewal by Andersen, we know the right way to install every product we sell, in every part of the country and within a wide variety of unique home construction styles—and of course we warrant our products AND our installation.

_{ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. See website for specific configuration details.}

The time your job takes varies depending on the number of windows and doors, the size of your crew, and the complexity of your structure — and a large majority of our replacement jobs are completed in as little as one day!
